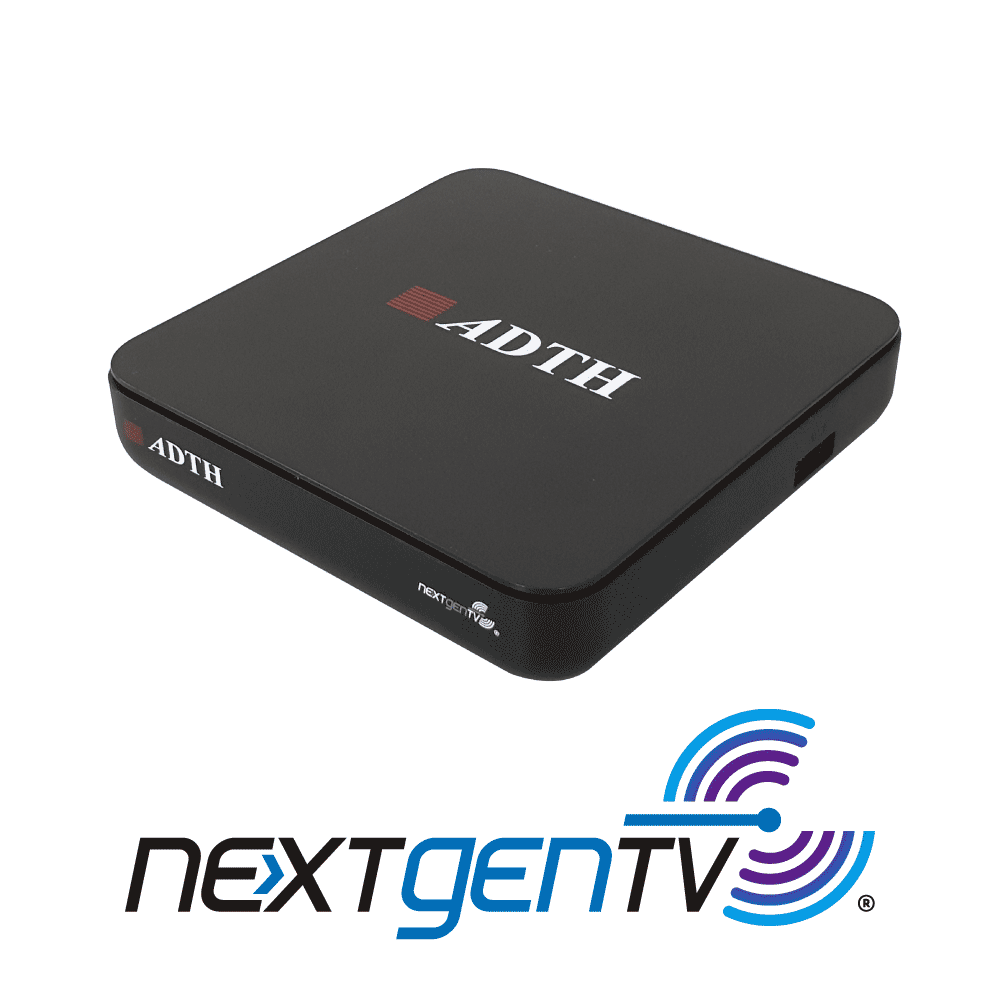

A 1100 – Digital Terrestrial Receiver

ADTH digital terrestrial receiver, A 1100, is a cost-effective and high performance digital set-top box.  It is the most compact receiver under the ADTH set-top box range.

A 1100 is configured with ISDBT demodulator which accepts all SD/HD digital content over IP inputs and convert them to the relevant output. The receiver can decode HD and/or SD video encoded with MPEG-2 and MPEG-4/H.264. It is configured with a transport-stream processor with multiple types of descrambler needed for different Conditional Access system. The receiver also serves as a multi-format audio and video decoder, and is capable of decoding MPEG-1/2/4, H.264, VC-1, AVS, and RealMedia formats.

S 4110 provides access to rich and abundant channels with user-friendly OSD, fast inter-channel switching capability, built-in WIFI solution, which undoubtedly makes it an ideal choice for viewers to obtain the maximum digital entertainment experience.

The receiver comes with an optional Conditional Access (CA) system allowing the decryption of the live content as well as the archived materials controlled by the Digital Rights Management (DRM) Systems.

Main Features

  • – Supports HD/SD MPEG-2, MPEG-4/H.264 transmission
  • – Installed with web browser application
  • – Operating on Linux operating system
  • – Automated PAL/NTSC identification
  • – Fast searching and inter-channels switching capability
  • – Network protocol of IPv4, RTSP, ISMA
  • – Installed with Advanced Electronic Program Guide (EPG)
  • – Supports multi language types

Specifications

CPU M3823

  • Nand Flash: –  128MB
  • DDR3: –  256MB
  • Work Frequency: –  675MHz, 1280DMIPS

VIDEO/AUDIO

  • Video decoding:
  •   MPEG-2 MP@HL,MP@ML MPEG-4.2 ASP@L5 (720P) H.264 (MPEG-4.10)BP@L3,    MP@L4.1, HP@L4.1, resolution up to 1080p@30fps
  •   AVS Decoder
  •   VC-1 Decoder, supports MP@HL and AP@L3 with resolution up to 1080p@30fps
  • Audio decoding:
  •   MPEG-1, MPEG-2 (Layer I/II) audio decoder
  •   Optional supports Dolby Digital (AC-3) audio decoding (Need License)
  •   Supports HE-AAC level 2 & level 4 audio decoding
  •   Supports audio down mixing from 5.1 channels to 2 channels
  •   Supports AAC and HE-AAC audio decoding

RF INPUT (OPTIONAL)

  • Output Channel (PAL): –  21-69CH
  • Outgoing Channel: –  40 Channels
  • Operating Temperature: –  5 to 65
  • Storage Temperature: –  -10 to 70
  • Output Channel (NTSC): –  3 or 4
  • Operating Temperature: –  0~60
  • Storage Temperature: –  -10 to 70

TERRESTRIAL TURNER

  • Input Frequency Range: –  47-86MHz
  • Channel Bandwidth: –  6MHz
  • Input Impedance: –  75Ohm

FRONT PANEL

  • Indicators (optional): – 3 keys, Power/CH+/CH-  LED status indicator (power/standby/signal)
  • USB –  1x USB 2.0 Host

CONNECTIONS

  • Video: –  1x Composite Video and Audio (AV) out
  • HDMI: –  1x HDMI out
  • ANT IN: –  Type F (Female)

REMOTE CONTROL

  • Infrared IR Remote Controller
  • (33 keys, RC5/RC6, NEC)

POWER

  • Power Supply Type –  Power adapter input DC 5V/2A

DIMENSIONS

  • 120mm(L) x 92mm(W) x 25mm(H)
  • 0.14Kg

ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 0 to +40
  • Storage Temperature: -10 to +60
  • Humidity: Maximum 85% relative, non-condensing
