ADTH NEXTGEN TV BOX

ATSC 3.0 NEXTGEN TV brings more high-quality content, such as live sports events, movies, TV shows, news broadcasts, and more. It improves the TV viewing experience with higher audio and video quality, including up to 4K resolution, HDR, and immersive audio. ATSC 3.0 is a hybrid broadcast and IP-based delivery standard that uses OFDM modulation instead of 8VSB modulation. It supports more robust transmission for reception on both fixed and mobile devices, datacasting capabilities, and more accessibility, personalization, and interactivity.

Main Features NEW

TV Box for ATSC 1.0 and ATSC 3.0 NEXTGEN TV

  • TV Tuner: Both ATSC 1.0 and ATSC 3.0 NEXTGEN TV
  • Maximum Supported Resolution: 2160p (4K)
  • High Dynamic Range (HDR)
  • Dolby AC-4 Audio
  • DRM Support (Requires internet connection)
  • Wi-Fi: Dual Band 2.4G/5G 2T2R
  • Bluetooth 5.0
  • Remote Control Unit
  • Power Adapter



FAQs

For more information, please visit our Support site: ADTH NEXTGEN TV Box : ADTH Support



Release Notes and Known Issues

https://support.adth.com/en/support/solutions/articles/43000711215-release-notes-and-upcoming-releases



Specifications

In the box

  • ADTH NEXTGEN TV Box
  • Get Started Guide
  • Remote control
  • AC power adapter

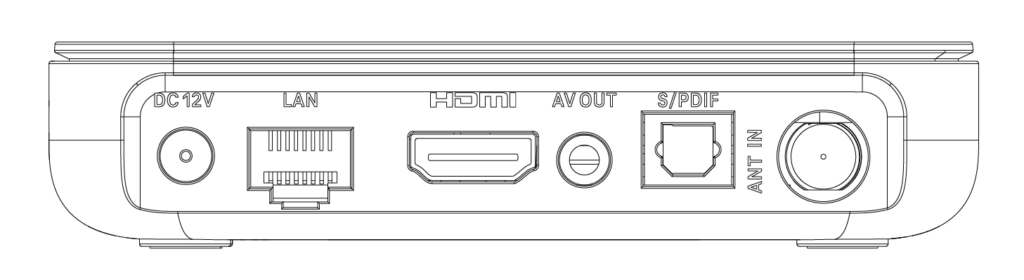

Connections

DC 12V Connect to included AC power adapter
LAN Connect to an internet router. Also included are Dual Band Wi-Fi 2.4G/5G 2T2R and Bluetooth 5.0 (An Internet connection provides access to encrypted broadcast channels.)
HDMI Connect to a TV or AV Receiver’s HDMI port
AV OUT Connect to a TV or AV Receiver’s RCA composite ports
S/PDIF Connect to an AV Receiver or external sound system for Dolby Digital Plus surround sound (when supported)
ANT IN Connect to an antenna (rooftop is best) to receive ATSC 3.0 NEXTGEN TV and ATSC 1.0
USB (not pictured) Connect to USB storage for offline Software Updates

Video Features

4K HDR Ready

Up to 4K playback at 60 FPS (AV1, VP9, H.265/HEVC, AVS2-P2)

Up to 4K playback at 30 FPS (H.264 AVC)

Up to 1080p playback at 60 FPS (MPEG-4, WMV/VC-1, AVS-P16(AVS+), MPEG-2, MPEG1, RealVideo 8/9/10)

Audio

Dolby Audio (Dolby Digital, Dolby Digital Plus)

Audio Support: MP3, AAC, WMA, RM, FLAC, Ogg and programmable with 7.1/5.1 down-mixing

Storage

Expandable via USB

Wireless

Wi-Fi 5 – 802.11 b/g/n/a/ac 2.4GHz/5GHz

Bluetooth 5.0

Software Updates

Software updates directly from Atlanta DTH
